Immobilizer (CB6039E)

Details
Written by: Newton C. Braga

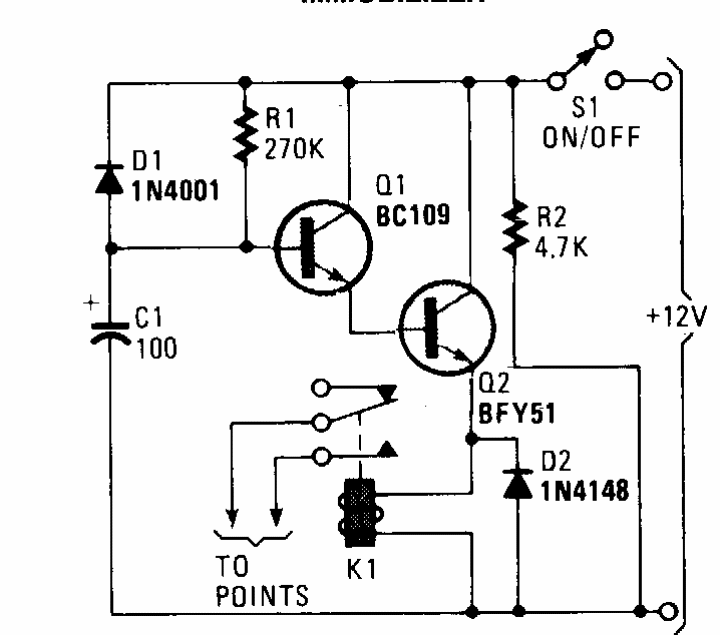

     This immobilizer circuit for vehicles was found in a 80’s Hands On Electronics. The circuit shortens the platinum to prevent its operation and thus the operation of the engine when started.




| Clique na imagem para ampliar |
