Pulse Width Modulator (CB5364E)

Details: Written by: Newton C. Braga

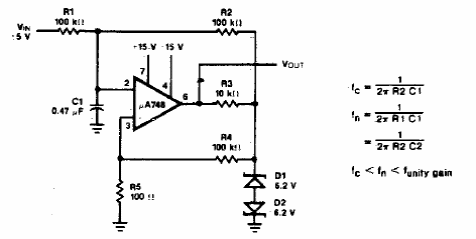

This circuit is from an old operational amplifiers manual. However, the setting applies to modern equivalents. The formulas for calculating the components are given next to the diagram.
