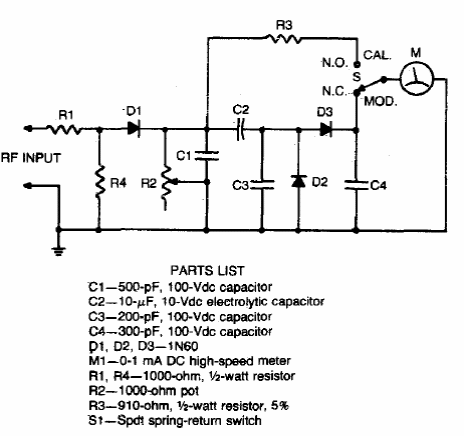

We found this circuit in an ancient American documentation. It can be adapted to operate in other ranges. In fact, it is for 10 to 30 MHz transceivers without modifiers. The indicator can be a milliammeter or a current range of a standard multimeter.
