Crystal Oscillator (CB6146E)

Details: Written by: Newton C. Braga

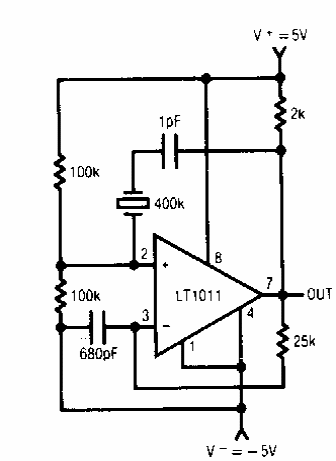

This Linear Technology circuit was found in a 1980s documentation. The circuit can swing up to a few hundred kHz and requires a symmetrical power supply.
