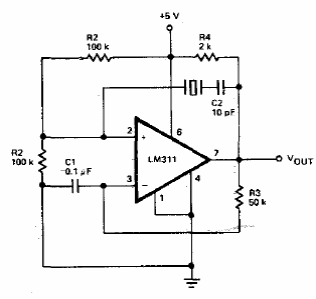

LM311 Oscillator (CB5131E)

Details: Written by: Newton C. Braga

This circuit is from the manual of the used operational amplifier itself. The same setting can be applied to other operational with component value changes.
