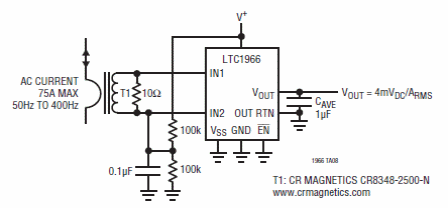

This circuit is from a 2005 Linear Technology application manual. The circuit uses a commercial current transformer. The circuit is suitable for currents of 75 A maximum and frequencies range from 50 to 400 Hz.
This circuit is from a 2005 Linear Technology application manual. The circuit uses a commercial current transformer. The circuit is suitable for currents of 75 A maximum and frequencies range from 50 to 400 Hz.
