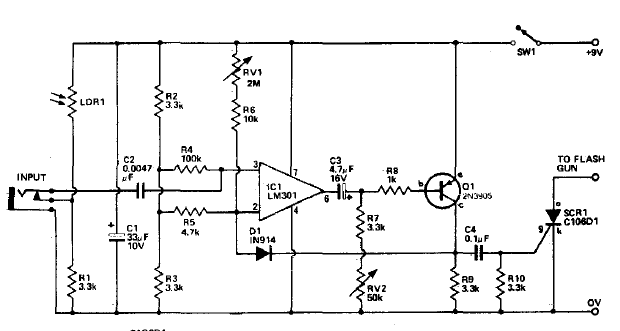

Sound Flash Trigger (CB5442E)

Details: Written by: Newton C. Braga

This circuit is from old American documentation intended to trigger the flash of a camera flash with the sound picked up by a microphone. The signal triggers the circuit.
