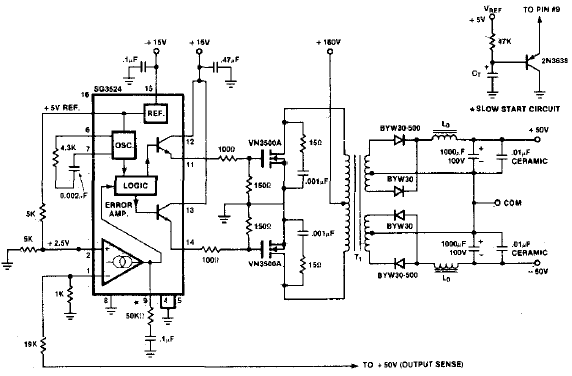

This switched circuit was found in an old documentation and no information about the transformer used is given. The circuit provides a symmetrical 50 V output.
