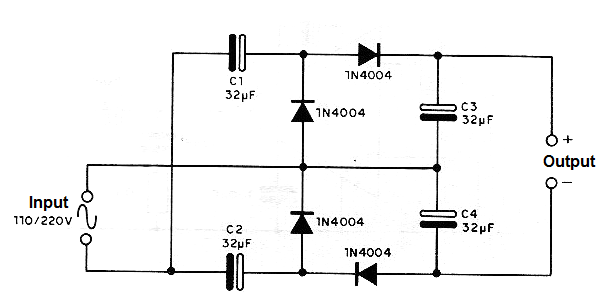

The voltage output of this circuit is 4 times the peak of the input voltage. Current depends on the capacitors and with a 220 V input the output is up to 1 200 V. Current is low and can be programmed by the capacitors. This circuit is not isolated from the AC power line. Use the 1N4007 for 220Vac power line.
