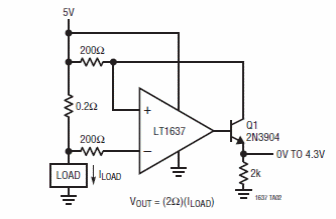

This classic positive side current sensor is from a 2005 Linear Technology manual. The transistor is general purpose and outputs from 0 to 4.3 V. The circuit can be used as a shield.
