Pulse Generator (CB5918E)

Details: Written by: Newton C. Braga

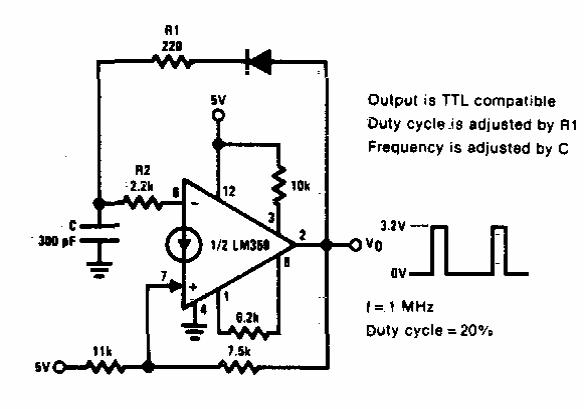

This circuit makes use of a transconductance operational amplifier. It generates signals with TTL compatible output when powered by 5 V and can be used as a shield. The circuit is from an American 80's documentation.
