High Side Transimpedance Amplifier (CB5228E)

Details: Written by: Newton C. Braga

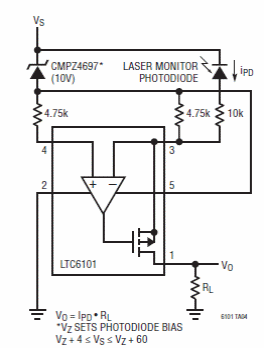

This circuit for Laser Diode power was found in a 2005 Linear Technology manual. In the diagram some information for calculation and performance evaluation.
