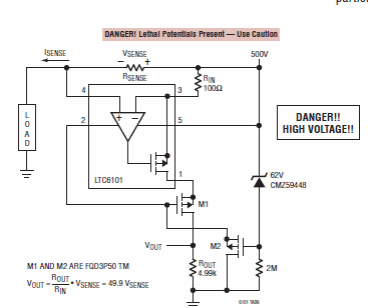

This current monitor can operate on 500V circuits. The circuit is suggested by a 2005 Linear Technology application manual. Along with the diagram is the formula for calculating components as a function of the load current.
