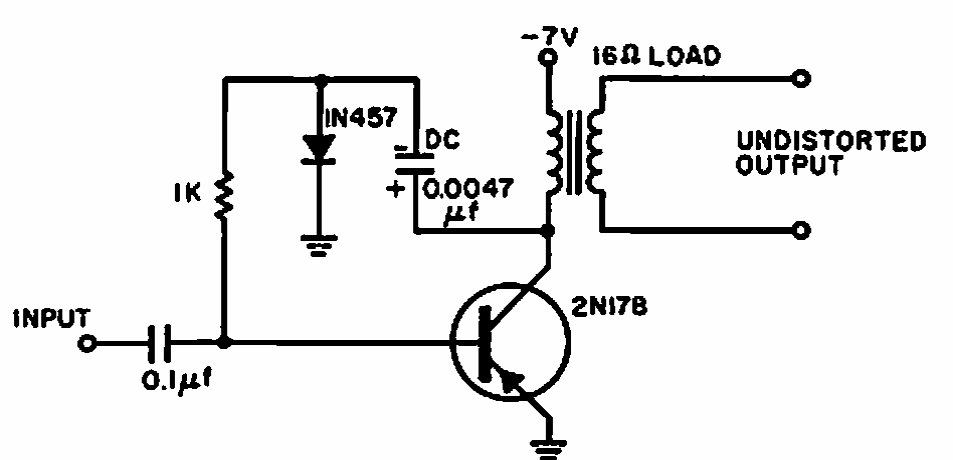

This low distortion circuit was found in a 1964 Electronic Design. The transistor admits equivalent and the power supply is 7 V. The characteristics of the transformer used were not given.
