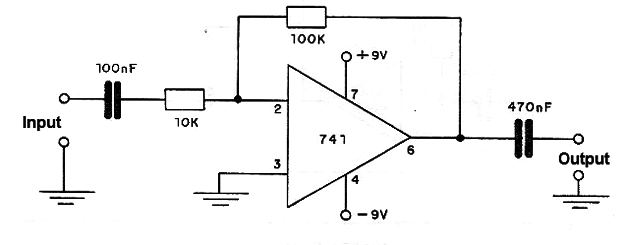

The voltage-gain for this amplifier is 10. Other operational amplifiers can be use and the Power supply can range from 6 + 6 V to 15 + 15 V. The input impedance is 10 k and the output impedance is about 150 ohm. The maximum operation frequency is 100 kHz.
