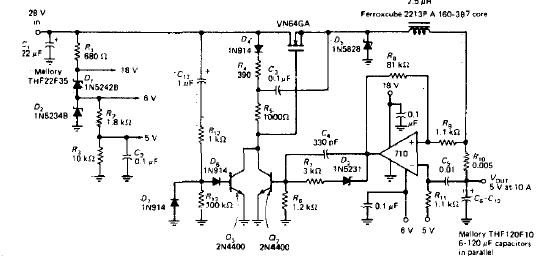

This switching regulator circuit with less than 100 mV ripple was found in a 1980s documentation. The circuit can be designed using modern components. The output is 5 V with a 10 A output current.
