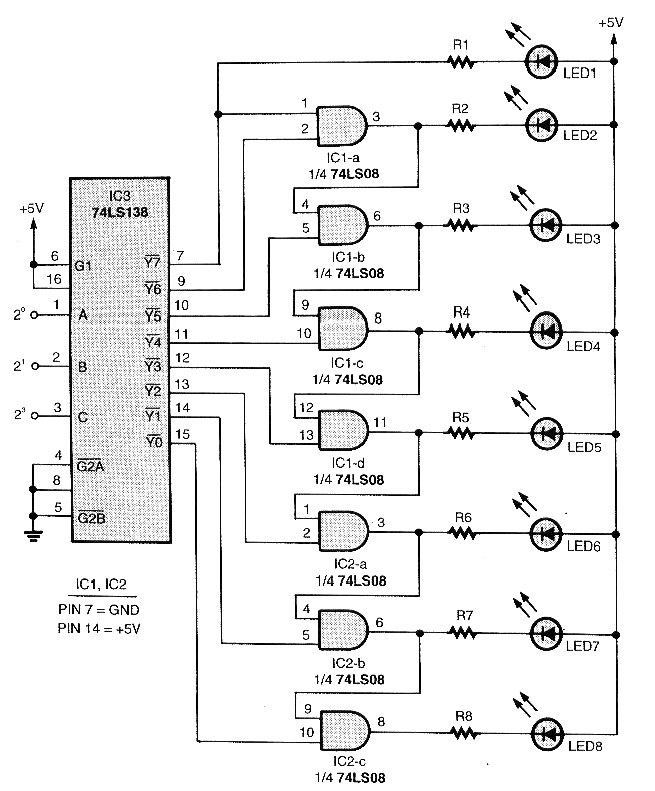

This interesting shield circuit was obtained from a Poptronics of February 2001. The American magazine no longer exists in its printed form, but this circuit is still viable as it uses common components.TTL. Power must be at 5 V and input is TTL compliant.
| Clique na imagem para ampliar |
