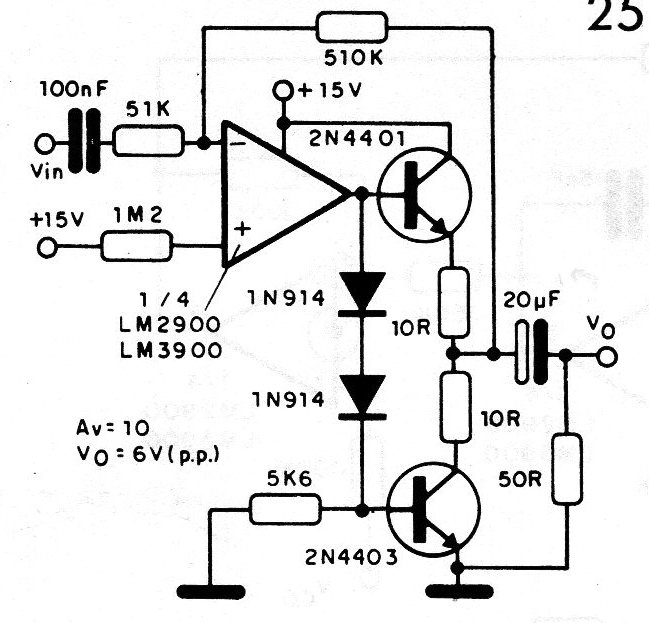

The gain of this amplifier is 10 times and the excursion to the output voltage is 6.0 V (peak to peak). Two transistors are used so as to. form a complementary low impedance output stage The diodes are general purpose silicon. The reference in this circuit, given by the connection of the non-inverting input, is made with the 25 V supply voltage. This voltage comes from a single power source.
