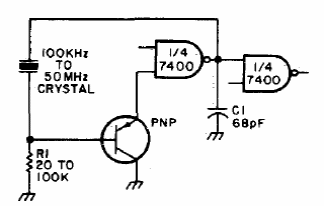

This circuit shows how to implement a TTL compatible oscillator using a transistor. The circuit is from an 80's American documentation and the transistor can be any according to the desired frequency.
