Stereo Balance Indicator (CB6001E)

Details
Written by: Newton C. Braga

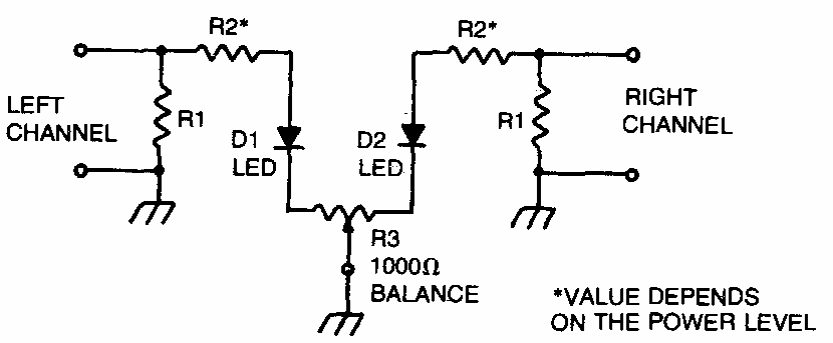

     This passive circuit was found in a 1980s documentation. The circuit serves to indicate the balance or balance between the channels of a stereo amplifier.




| Clique na imagem para ampliar |
