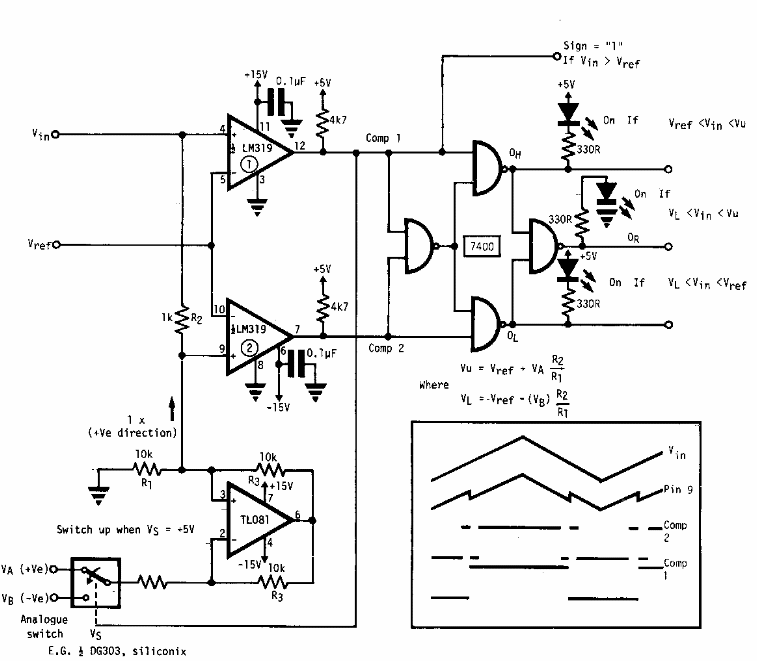

This sophisticated comparator, which may have didactic or practical purposes, was found in a 1980s American documentation. The circuit operates from a symmetrical power source and can be adapted to use modern components.
| Clique na imagem para ampliar |
