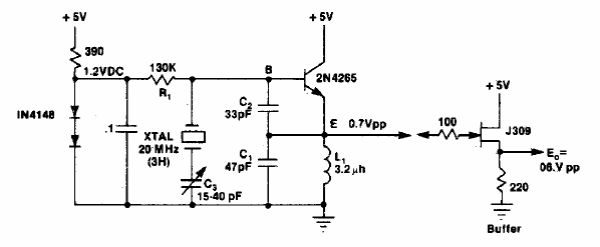

This circuit generates 100 MHz signals from a 20 kHz crystal. The circuit is from an 80's documentation, using transistors of the time. Current equivalents may be used and power is supplied with 5 V.
![](/images/stories/cir/224112412023_143741_0001.gif)
This circuit generates 100 MHz signals from a 20 kHz crystal. The circuit is from an 80's documentation, using transistors of the time. Current equivalents may be used and power is supplied with 5 V.
