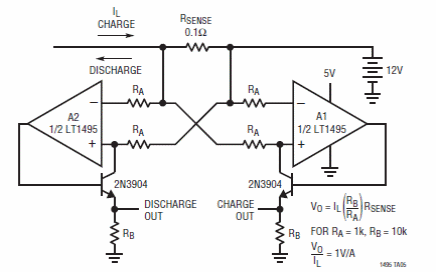

This circuit was obtained from the Linear Technology 2005 Application Manual. The circuit sensing both the charging and discharging of a 12 V battery. Formulas next to the diagram make it possible to calculate component values.
![](/images/stories/cir/224212422023_164342_0001.gif)
This circuit was obtained from the Linear Technology 2005 Application Manual. The circuit sensing both the charging and discharging of a 12 V battery. Formulas next to the diagram make it possible to calculate component values.
