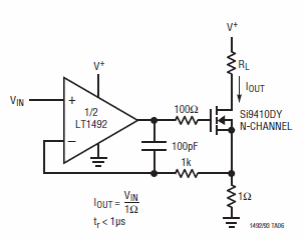

We find this circuit in a Linear Technology application manual. The circuit can drain up to 1 A of current being controlled by the voltage applied to the LT1492.
![](/images/stories/cir/224912492023_150949_0001.gif)
We find this circuit in a Linear Technology application manual. The circuit can drain up to 1 A of current being controlled by the voltage applied to the LT1492.
