Tri-Color LED Indicator (CB25317E)

Details
Written by: Newton C. Braga

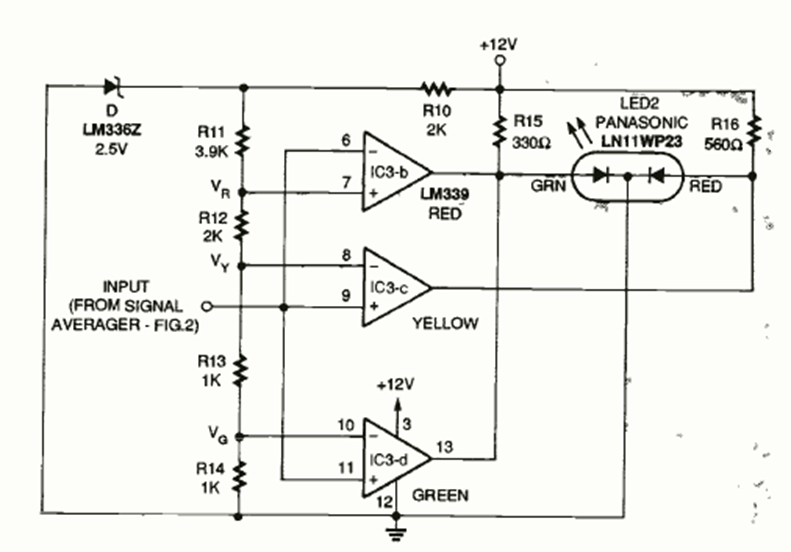

This dual-LED circuit indicates three signal levels. It was found in the January 1996 issue of Electronics Now magazine. The integrated circuit may be an LM339 or another comparator.
