AM Receiver Via Power Grid (CB25196E)

Details
Written by: Newton C. Braga

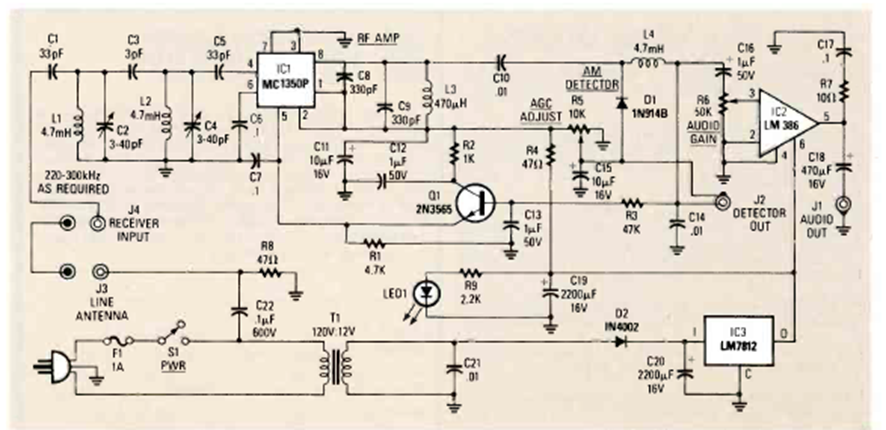

For signals up to about 500 kHz modulated in amplitude and transmitted by the power network, the figure shows the receiver. The circuit is from a Radio Electronics from February 1989.
