Siren 4046 (CB25764E)

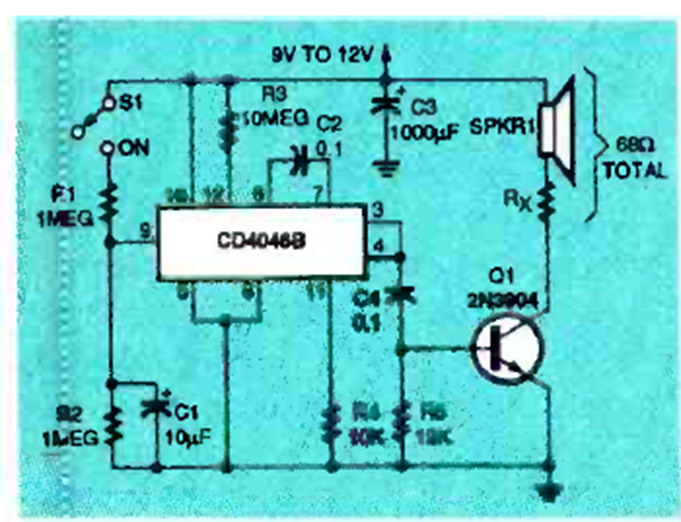

This circuit with the PLL4046 was found in the October 1994 Electronics Now magazine. The transistor is low power, and the volume obtained is small.

| Clique na imagem para ampliar |
