Antenna Amplifier (CB25885E)

Details: Written by: Newton C. Braga

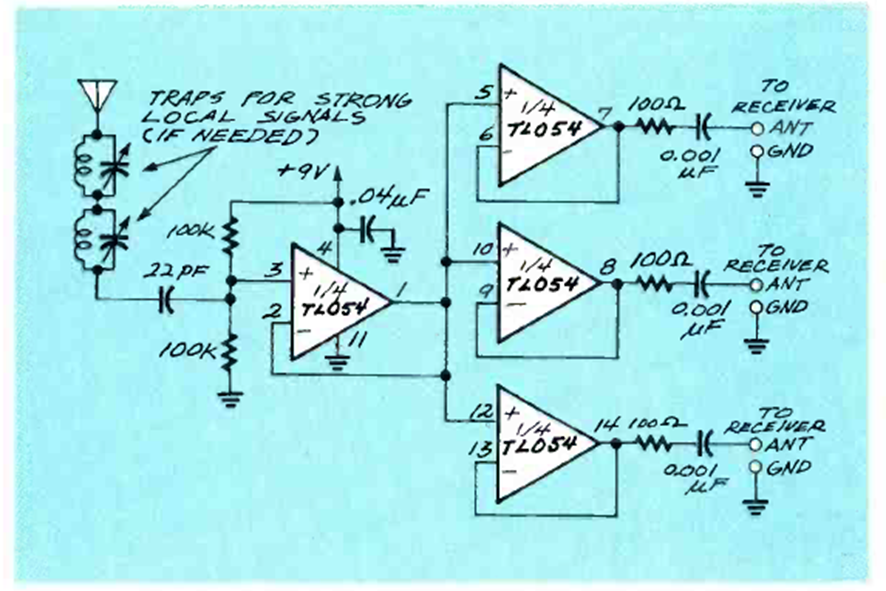

This circuit can be used with 3 receivers and is intended for low frequencies (medium wave range). We found it in the September 1995 Electronics Now magazine.

| Clique na imagem para ampliar |
