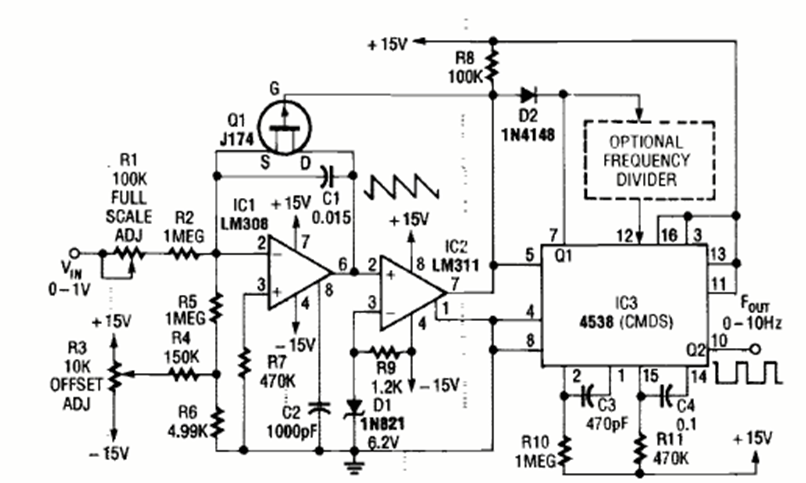

This converter was found in the June 1991 issue of Radio Electronics magazine. The circuit uses common circuits at the time and its operating range can be changed.
| Clique na imagem para ampliar |
Low Frequency Converter 4538 (CB25388E)
- Details
- Written by: Newton C. Braga
