Dimmer with Unijunction and Triac (CB25883E)

Details
Written by: Newton C. Braga

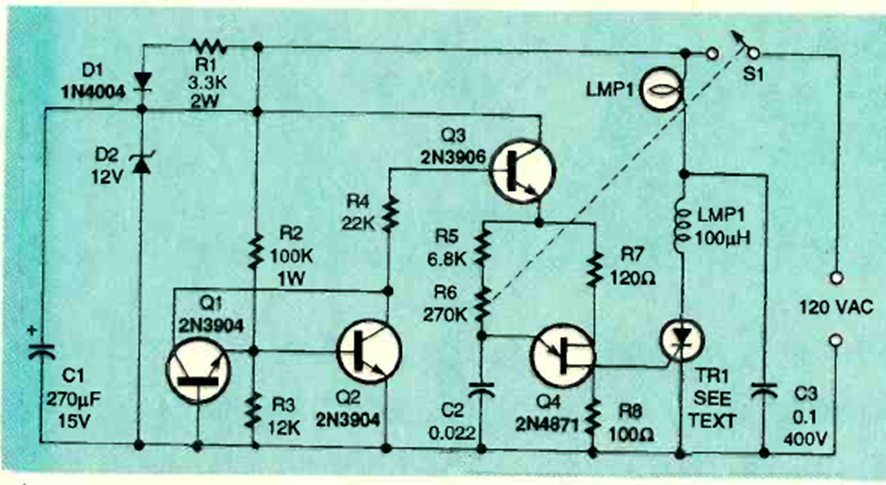

This dimmer for the 120 V (117 V) network was found in the magazine Electronics Now of August 1995. The triac is according to the load that must be ohmic.
