Telephone Dialer Detector (CB25142E)

Details
Written by: Newton C. Braga

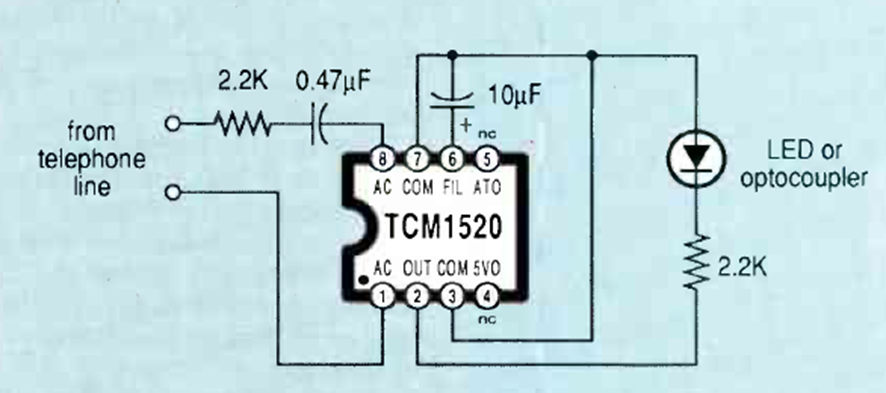

This circuit is for old telephones with analog lines. It was found in the May 1988 Radio Electronics magazine. The circuit is powered by the line signal voltaje.




| Clique na imagem para ampliar |
