LM3914 with Overscale Alarm (CB25112E)

Details
Written by: Newton C. Braga

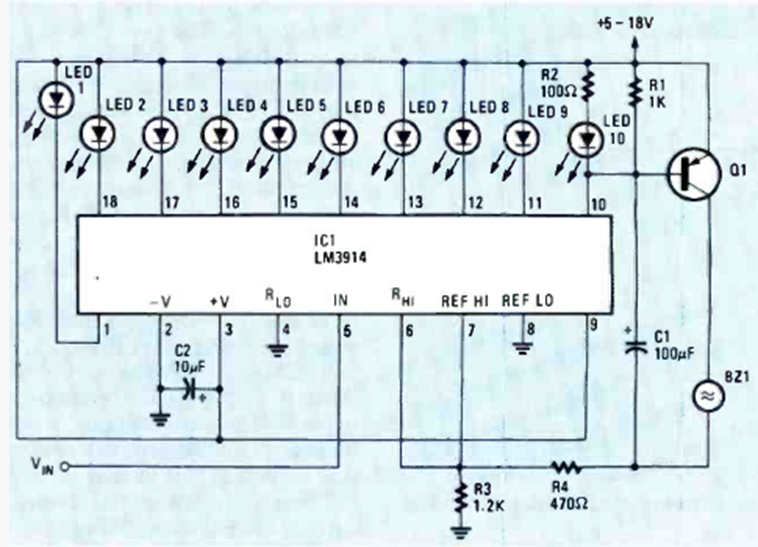

The figure shows how to implement an alarm buzzer in an LM3914 to warn about crossing the scale limit. The circuit can use other types of warning.




| Clique na imagem para ampliar |
