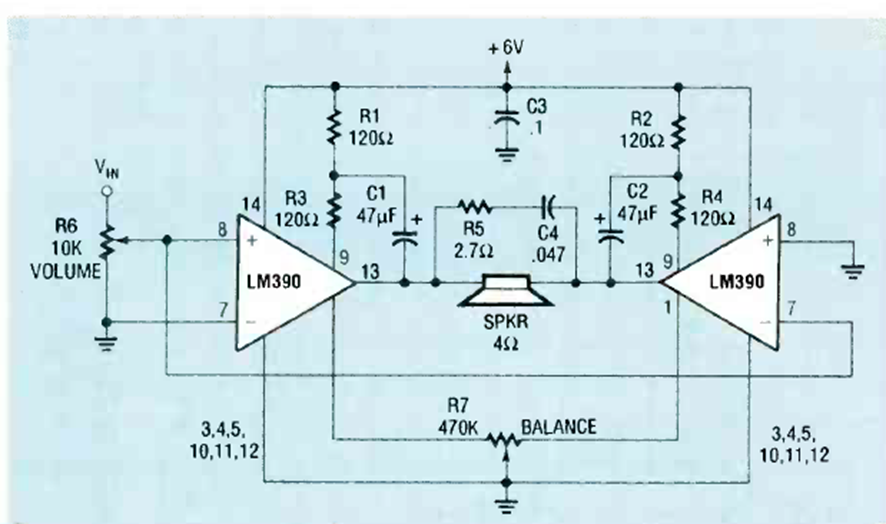

Bridge Amplifier with LM390 C (CB25308E)

This circuit provides 2.5 W of power with 6 V supply and 4-ohm speaker. We found it in the Radio Electronics magazine of April 1990.

| Clique na imagem para ampliar |

VCO with a Frequency Range of 100: 1 (CB1545E )
We find this circuit in a documentation for engineers from 1971. The circuit generates rectangular and...
SSB Balanced bridge modulator (CB4109E)
This circuit is from a 1980's documentation for telecommunications. The circuit is used in SSB and...
Automatic Shutdown Relay 4001 (CB25743E)
We found this circuit in the July 1994 Radio Electronics magazine. The circuit uses a...
