LM3914 expanded scale (CB25110E)

Details
Written by: Newton C. Braga

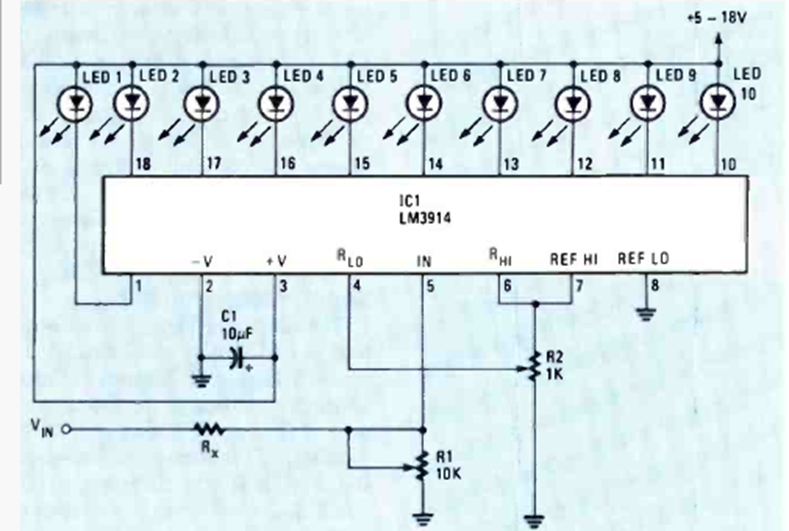

The figure shows how to use the LM3914 bargraph with expanded scale. The circuit has two adjustments determining the extremes of the LED excitation scale.




| Clique na imagem para ampliar |
