Rectangular Signal Generator 4046 (CB25255E)

Details
Written by: Newton C. Braga

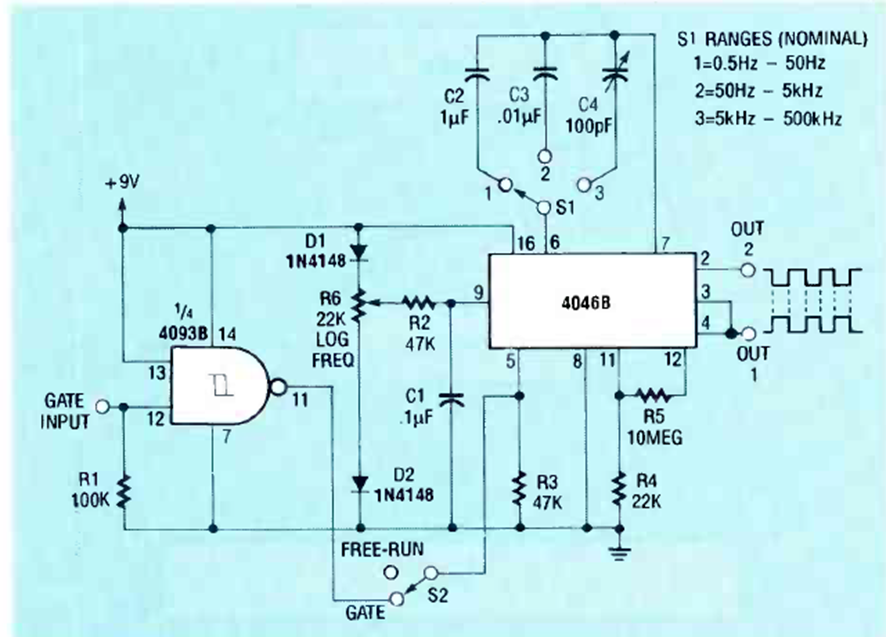

Using a 4046 PLL this circuit generates rectangular signals in three wavebands that depend on the capacitors used. The circuit is from a Radio Electronics from December 1989.




| Clique na imagem para ampliar |
