LM386 Bridge Amplifier (CB25300E)

Details
Written by: Newton C. Braga

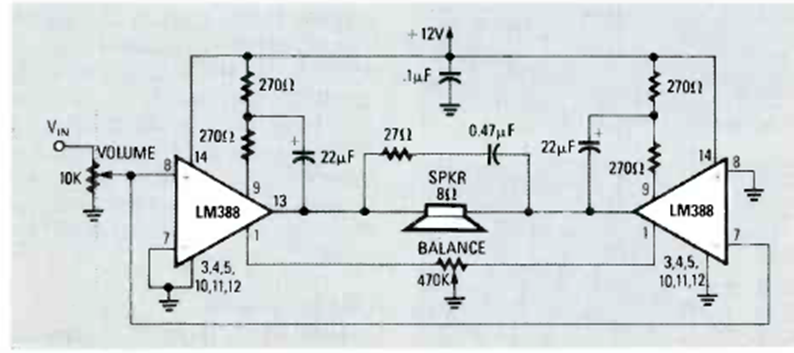

This bridge circuit is designed for 8-ohm speakers delivering a few watts of power. The circuit is from a Radio Electronics from March 1990.
