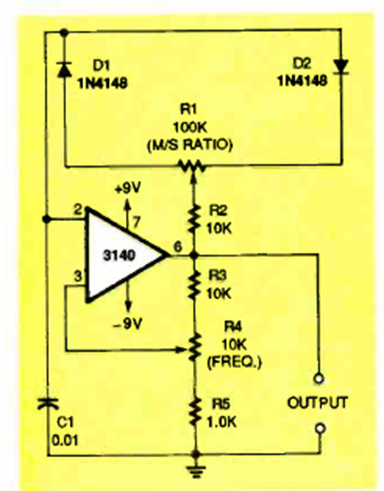

Using an operational amplifier, this circuit was found in the March 1996 issue of Electronics Now magazine. The source must be dual, and the frequency range is determined by C1.
Duty Cycle Square Oscillator (CB25328E)
- Details
- Written by: Newton C. Braga
