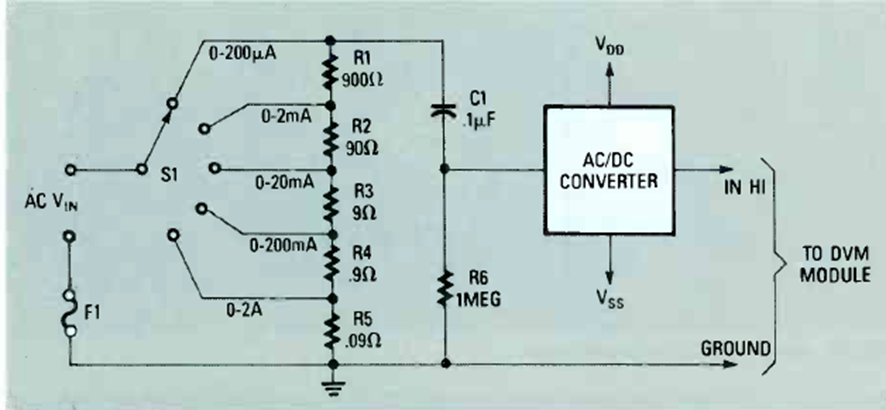

5-Range Ammeter for DVM Module (CB25225E)

This 5-range current measurement circuit was found in the September 1989 issue of Radio Electronics magazine. It uses an AC/DC converter.

| Clique na imagem para ampliar |
