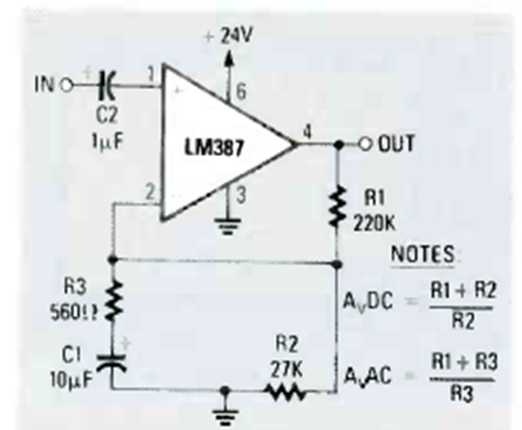

This non-inverting AC amplifier was found in the February 1990 issue of Radio Electronics magazine. The power supply is simple, and the gains are given by the formulas in the diagram.
LM381 52 dB Amplifier (CB25276E)
- Details
- Written by: Newton C. Braga
