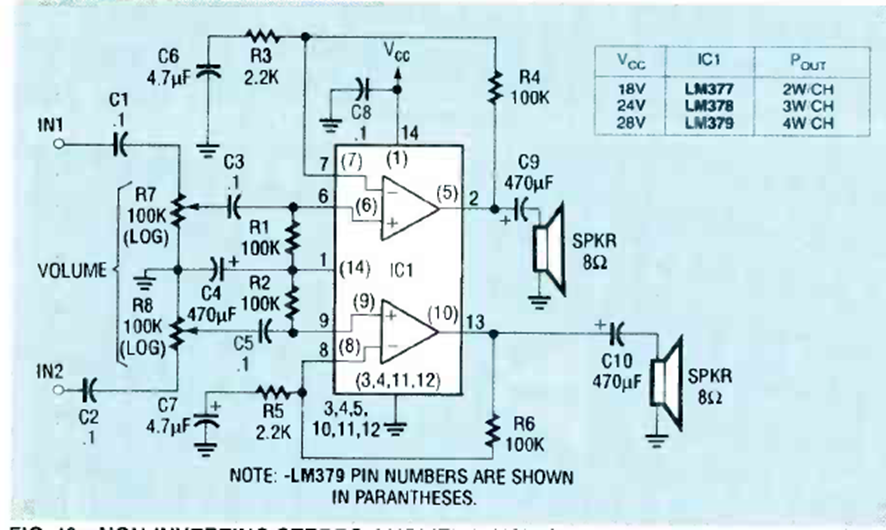

Non-inverting stereo amplifier LM377 (CB25939E)

Details
Written by: Newton C. Braga



This circuit with output powers of 2 to 3 W depending on the power supply was found in the magazine Radio Electronics of April 1990. The speakers are 8-ohm.
