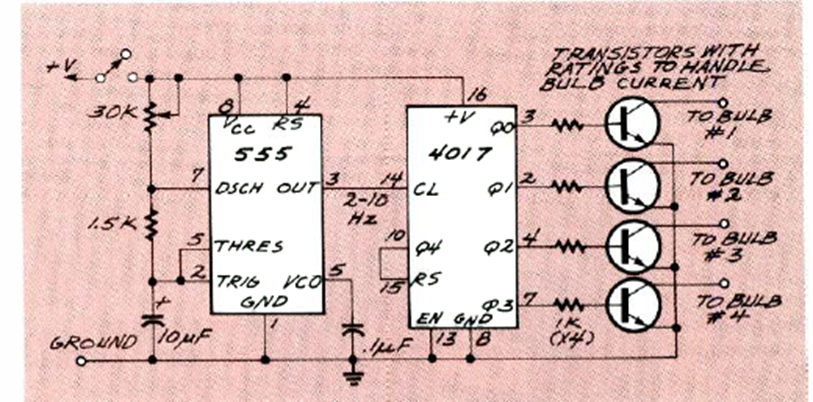

This conventional 4 channel circuit with the 4017 and 555 was found in the November 1991 Radio Electronics magazine. The potentiometer can be 47k and it controls the speed of the effect.
| Clique na imagem para ampliar |
Sequential Flasher (CB25405E)
- Details
- Written by: Newton C. Braga
