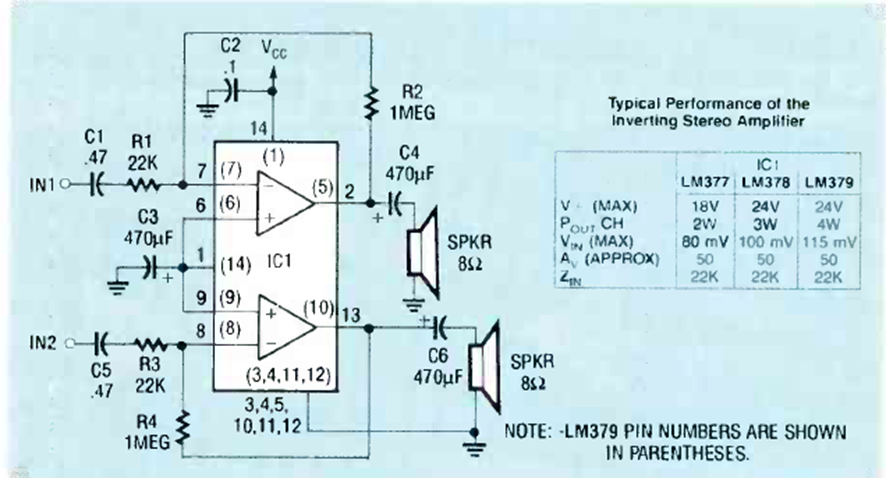

The figure shows an application of the LM377 in a small inverting stereo amplifier with output powers between 3 and 4 W. The circuit is from a Radio Electronics from April 1990.
| Clique na imagem para ampliar |
LM377 Stereo Amplifier (CB25938E)
