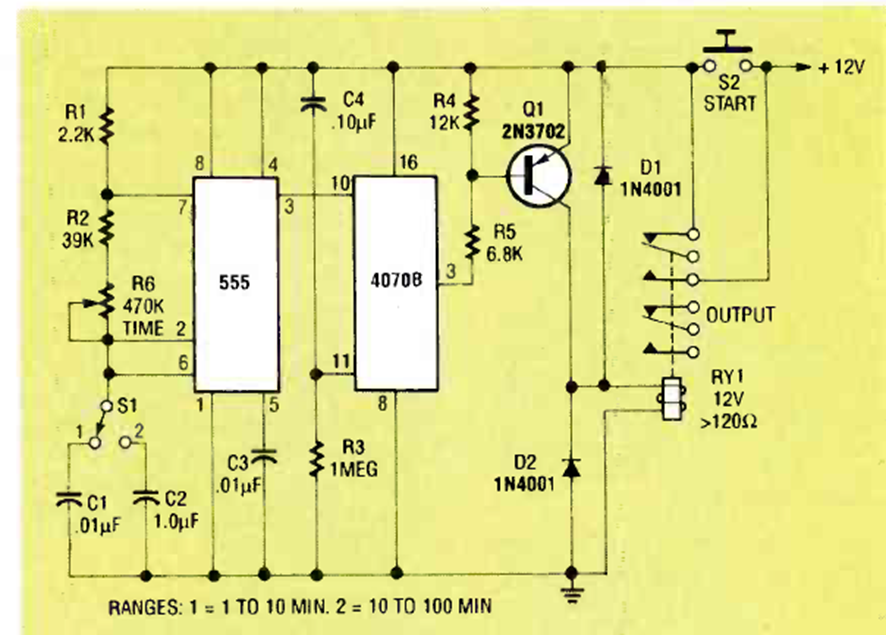

This circuit was found in the November 1992 issue of Radio Electronics magazine. The circuit has an amplification stage for the relay. The relay is rated at 12 V.
| Clique na imagem para ampliar |
555 2-Range Relay Up to 10 Minutes (CB25535E)
