Heating Element Control (CB25877E)

Details
Written by: Newton C. Braga

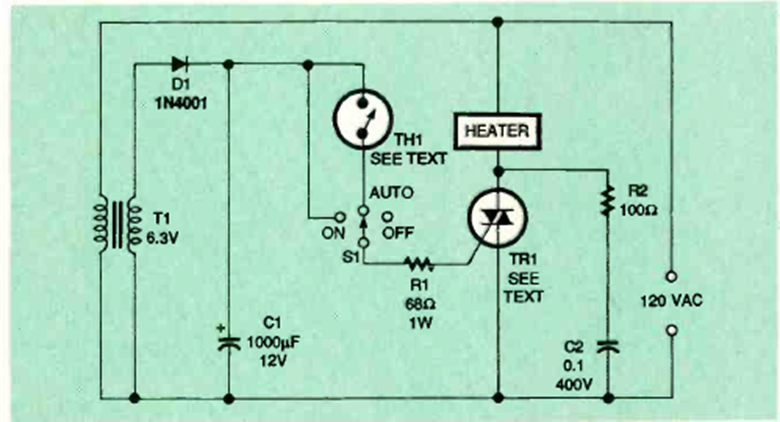

This triac circuit was found in the July 1995 Electronics Now magazine. The triac is based on the heating element current and must be equipped with a heat sink.
