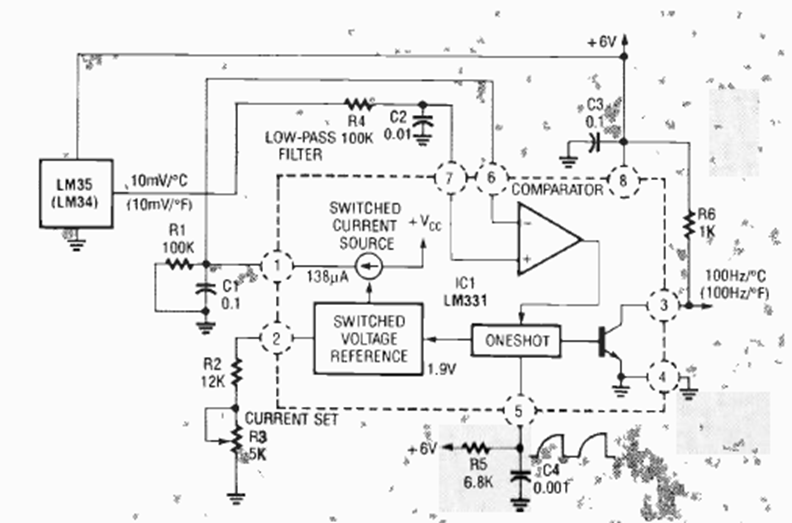

Temperature to Frequency Converter LM35 or LM34 (CB25447E)

We found this circuit in the March 1992 Radio Electronics magazine. The circuit provides 100 Hz for each degree Celsius or Fahrenheit.
