555 Police Siren (CB25521E)

Details
Written by: Newton C. Braga

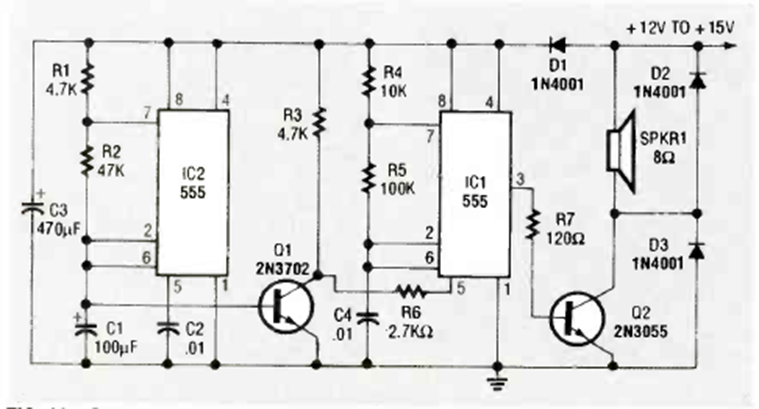

This is one of the many possible siren configurations for the 555 integrated circuit. We found it in the October 1992 Radio Electronics magazine. It has a power stage.




| Clique na imagem para ampliar |
