FSK Circuit (CB25780E)

Details
Written by: Newton C. Braga

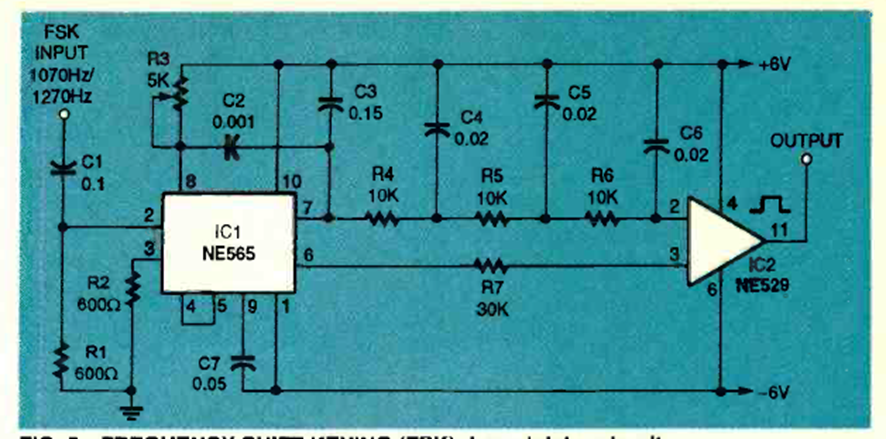

This frequency shift modulation circuit was found in the November 1994 issue of Electronics Now magazine. The circuit operates at low frequencies.
