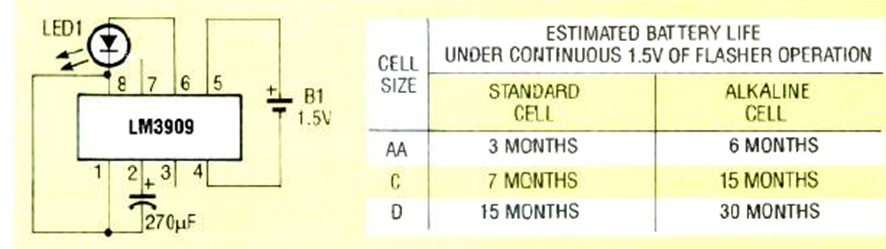

This circuit can flash for up to 30 months using alkaline batteries as shown in the table next to the diagram. The circuit is from a Radio Electronics from January 1992.
| Clique na imagem para ampliar |
Long-lasting flasher LM3909 (CB25422E)
