Dual Synchronous Binary Counter (CB25444E)

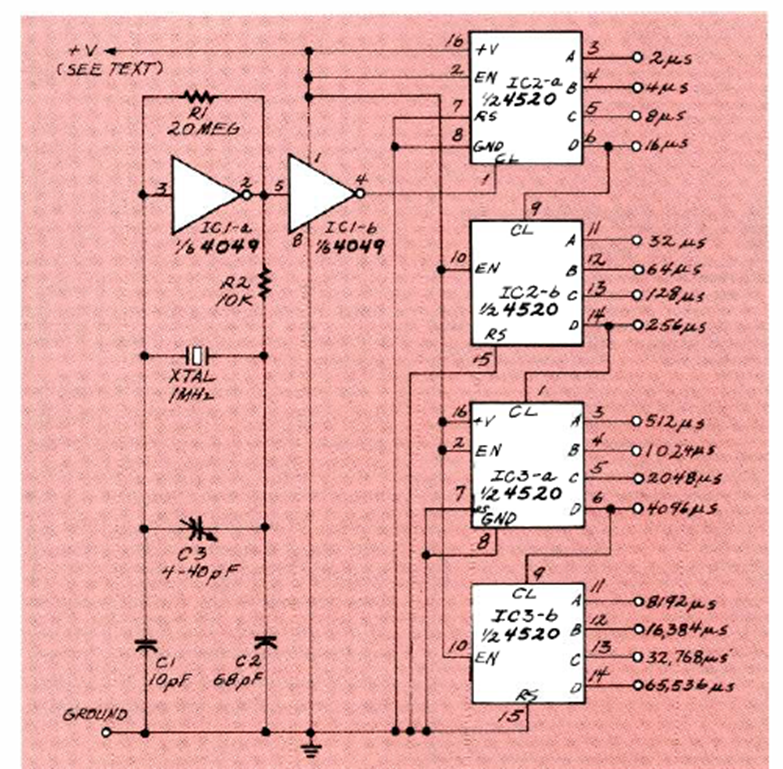

This circuit was found in the February 1992 issue of Radio Electronics magazine. The circuit provides stepped frequencies as shown in the diagram.

| Clique na imagem para ampliar |

Low Pass Second Order Filter 741 (CB25818E)
This unity gain circuit was found in the February 1995 Electronics Now magazine. The frequency is 10 kHz,...
Pulse Compressor and Expander (CB6658E)
Found in a 1967 Electronic Design, this transistorized circuit compresses and then expands a pulse....
Simple pulse extender (CB8921E)
This TTL pulse stretcher or stretcher was found in a 90's EDN. The time constant R x C1 determines...
