Bis

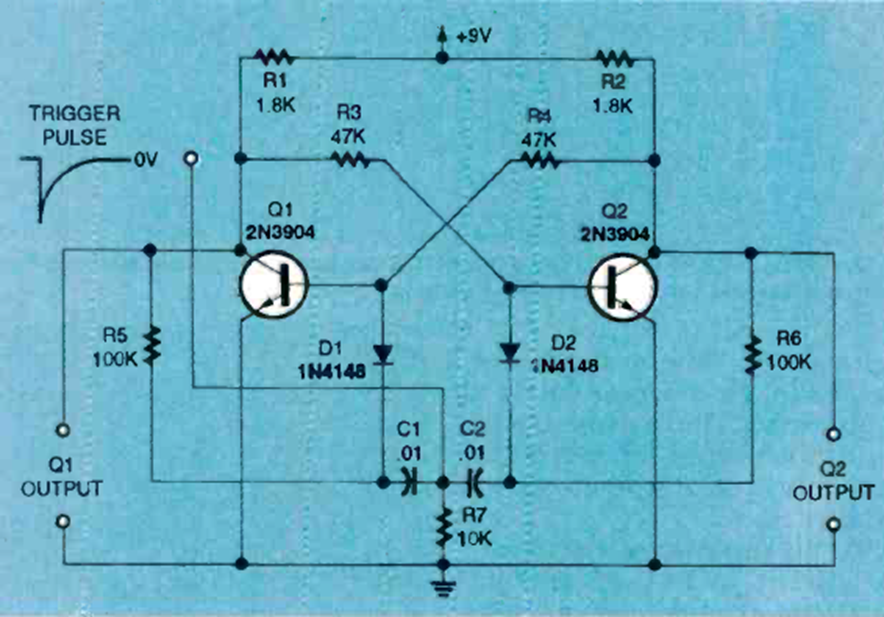

This two-transistor circuit was found in the January 1994 issue of Electronics Now magazine. The circuit is compatible with both TTL and CMOS logic.
| Clique na imagem para ampliar |
table divider by 2 (CB25675E)
